Place of Origin: Tianjin, China Brand Name: EJON
Conditon: New Model Type: ET20C Suitable Material: Stainless steel,Galvanized plate,Aluminum plate Automaic: Automatic
After-Sales Service: Video/Oline support, Engineers Service Power: CNC
Slotting Method: Plane cutter Slotting Trip: 20-200mm
Bending Method: Double Blade Alternating Bending System Warranty of core component: 1 Year
Certification: CE SGS Machine weight:: 800kg
Supply Ability
Supply Ability:100 Sets/Year
Packing &Delivery
Packaging Details: Fumigated Wooden Box
Port :Tianjin Port Or other China Port
Delivery Time : 10-20 Working Days
Product Description
EJ0N ET20C full-automatic notching and flanging bending machine adds the function of
automatic notching and cutting for flat metal material on the basis of existing bending machine.
The notching and cutting are controlled by servo system,which is high precision,fast speed, strong stability.The software operation is simple, the processing graphics need not modify
the node,greatly improve the work efficiency,is the prefered model of high edge characters.
Manipulator alternated feeding structure,the material clamps are casted which can avoid
scratching the material,meanwhiles improving the feeding holding.Using air pressure to
press the material,avoid material uneven and ensure the smooth feeding.The double ball
screw is matched with nylon gear transmission for precise positioning ,which greatly improves
the feeding speed and stability of the machine.
Adopting plane cutter can slot all kinds of materials.The linear guideway is matched with
the ball screw,with 750W high-power servo motor,greatly improve the feeding speed and
stability.High strength alloy cutters are used for slotting knives,each knife has 8 angles,no
need to sharpen,greatly improve the working efficiency.
Double blading alternating structure,the curved knife structure cast by ductile iron,good
shock absorpton,high structural strength,reduced number of parts splicing,high-power servo
motor, high-speed bending work under the bending mechanism,the bending mechanism is
permanently deformed,which effectively improves the positioning accuracy and the stability
of the high-speed bending.
| SPECIFICATION |
| SYSTEM | 6 Axis control system(4 axis servo control) |
| Feeding System | Manipulator alternated feeding system |
| Slotting System | Plane cutter slotting system |
| Bending System | Double blade alternating bending system |
| Suitable Material | Stainless steel, Galvanized plate, Aluminum plate |
| Slotting Height | 20-200 mm |
| Material Thickness | 0.4-1.0 mm |
| Control System | 6 Axis control system (4 axis servo control) |
| Min Bending Angle | R6 |
| Min. U | 20 mm |
| Distance of internal&external angles | ≥10 mm |
| Distance of bending origin | 3 mm |
| V-cut method | Servo motor control |
| V-cut angle | 30° /120° |
| File Format | DXF. |
| Power | AC220 V, 50 Hz, 2.0 kW |
| Air Supply | 0.6 m3/min |
| Package Size | 1710(length)*780(width)*1600(height)mm |
| Working Space | 3200(length)*1100(width)*1500(height)mm |
| Machine Weight | 800 kg |
ET20C Machine part details
Feeding Parts :The feeding structure adopts double ball screw
with nylon gear transmission, ensuring smooth feeding and accurate positioning, greatly improving the feeding speed and
stability of the machine.

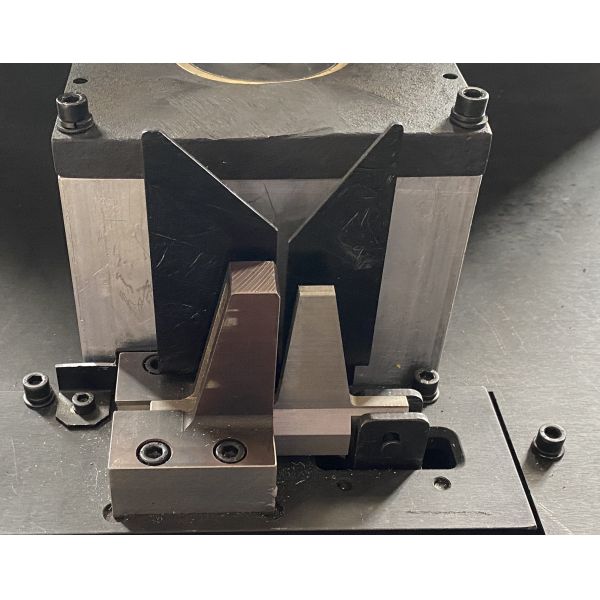

Notching &Flanging Parts: The notching and flanging are controlled by servo system, which has high precision, fast speed and strong stability. Equipped with debris storage box, non-pollution, more environment-friendly.
Slotting Parts: Adopts 750 W high-power servo motor, High strength alloy cutters are used for slotting knives, each knife has 8 angles, no need to sharpen, greatly improve the working efficiency.
Bending Parts: Double blades alternating bending system adopts 750 W servo motor, with the characteristics of fast response, stable operation, which effectively improves the system’s rapidity and stability.
Cutting Parts: After the production, the machine automatically
cuts raw material, which makes the processing more efficient and safer.
Sample Showing
How to learn machine operate
1. Operation Manual U disk
Provide U disk with machine which have detail specific english operational manual and videos.
2. Network Service
Through Wechat,Whatsapp,Skype,E-mail,Team viewer provide online service.
3. Factory Visiting
Welcome customer to visit our factory to learn how to operate the machine.
Supporting Facility
Computer Pump File Format
To use the device,you need to The use of equipment should The software of bending
install the control card in your be equipped with machine is self-developed. computer and then connect to AIR compressor,we suggest Import the format supports
the bending machine and install that the selection of more Dxf.Plt.Ai.We recommend
the software computer. than 4kw,the gas flow is using Coredraw or adobe
Configuration:XP system or 0.6m3/Min illustrator to complete
window7 32-bit system,and the file after the export file
requiresa pcl card slot to to Dxf.Plt.Ai format.Then
install the control card. open the operating software,
select the document
